Description
- High-concerned chemical: None
- EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
- Origin: Mainland China
Product Description
Recommended Uses or Product: Suitable for home use.
Power Source: Both grid and battery powered.
Wattage: 3000 watts.

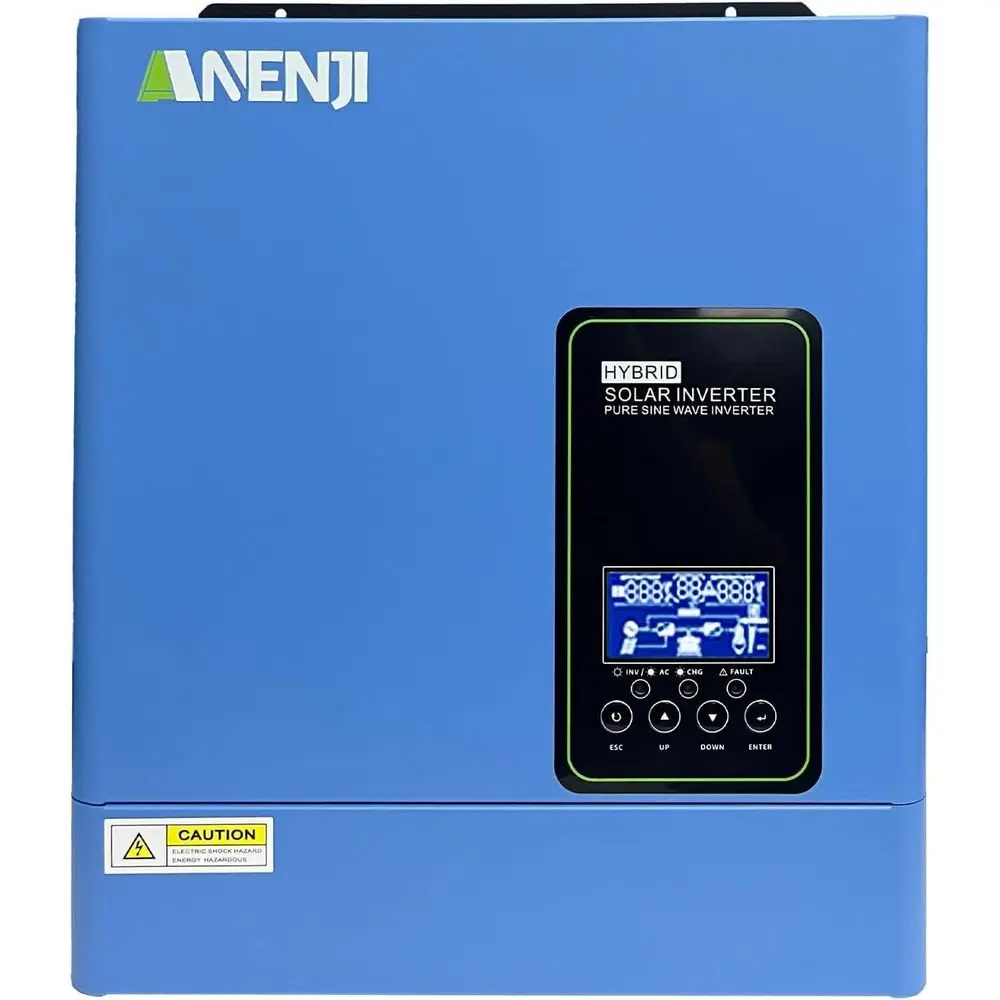

Model Name: ANJ-3KW-24V-LV-WII.
This hybrid inverter features a built-in 100A MPPT charger, optimizing energy harvest from PV arrays with a 500V max input. It supports up to 4,000W solar input and operates within a wide MPPT voltage range (60V–450V), ensuring compatibility with most solar panels. High conversion efficiency (97% PV to AC) reduces energy waste, making it ideal for off-grid or backup systems.
Battery Flexibility: The inverter offers battery power support for stand-alone battery operation and no-battery support for operation without a battery, requiring PV ≥130Vdc or utility power to directly supply loads. Li-ion charging can be enabled via setting 42 and is disabled by default.
Output Priority Modes: Key modes include UTL mode as the default utility power priority for loads, SOL mode with solar priority for loads supplemented by utility power if insufficient, SBU mode with solar priority using battery supplementation if needed, and SUB mode with solar priority charging supplying loads supplemented by utility power if insufficient.
Charging Modes & Safety Protection: Three charging modes adjusted via setting 16 include hybrid PV+utility charging (default), PV charging only, and another PV-only option. Multi-layer protection features overcharge/discharge prevention and external BMS support to extend battery life.
Built-in Wi-Fi for Remote Monitoring: Includes Wi-Fi connectivity for real-time tracking of power usage, PV input, and battery status via the Smartapp. Adjust settings remotely (e.g., output priority, charging) and receive fault alerts (e.g., overload, high temp), reducing troubleshooting time.
No-Battery Operation & Li-ion Battery Compatibility: No-Battery mode supports grid-tied operation relying on PV or utility power. With RS485 protocol, it auto-syncs with PYLON US2000 batteries or displays real-time SOC and charge-discharge limits. For non-communicating Li-ion batteries, user-defined settings prevent BMS conflicts.
LCD Real-Time Monitoring & Diagnostics: LCD displays real-time data and operational status, auto-error codes for troubleshooting, and three LED indicator quick status alerts.
Industrial-Grade Safety & Durability: Rated IP21 with a removable dust cover, protection includes overload shutdown after 140% sustained load or 5s, overheat/surge cut-off at DC ≤32V or AC ≤150V input, and configurable auto-restart post-fault. Operating temperature: -10°C to 50°C, supporting harsh conditions.
Information
Shipping
We currently offer free shipping worldwide on all orders over $100.
Return & exchange
If you are not satisfied with your purchase you can return it to us within 14 days for an exchange or refund. More info.
Assistance
Contact us on (+44) 555 88 65, or email us at support@reytheme.com.
Specifications
Nicely polished in black, with an extremely attractive wavy form. It gives ideal mood lighting in your bedroom as a night light, but it also serves as a mood generator in your living area. The light is 20 cm in diameter and 20.5 cm in height. Because the light source is visible in the lamp, you may simply select your preferred variation!
